Nissan Juke 2025 Owners Manual

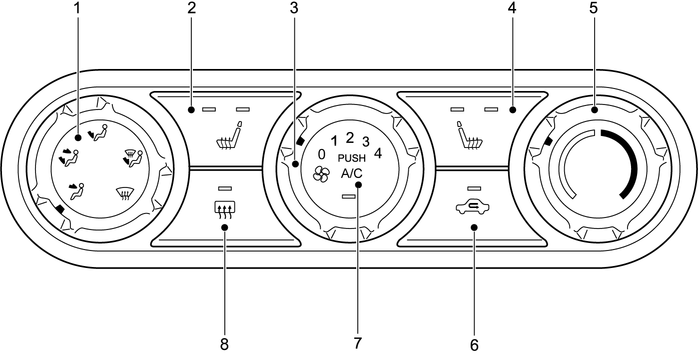

6.5.2.2. Type B (with seat heater)

  • 1.Air flow control dial
  • 2.Front left seat heater button. For more information, see
    Seat heating (where fitted)
    .
  • 3.Fan speed control image dial
  • 4. Front right seat heater button. For more information, see
    Seat heating (where fitted)
    .
  • 5.Temperature control dial
  • 6.Outside air circulation/Air recirculation image button
  • 7.<A/C> (Air Conditioner) button
  • 8.Rear window defogger switch (See
    Defogger switch
    .)

To turn off the heater and air conditioner, turn the fan speed control image dial to the OFF (0) position.

Parent topic:
Manual air conditioner
