2.3.1. High voltage components

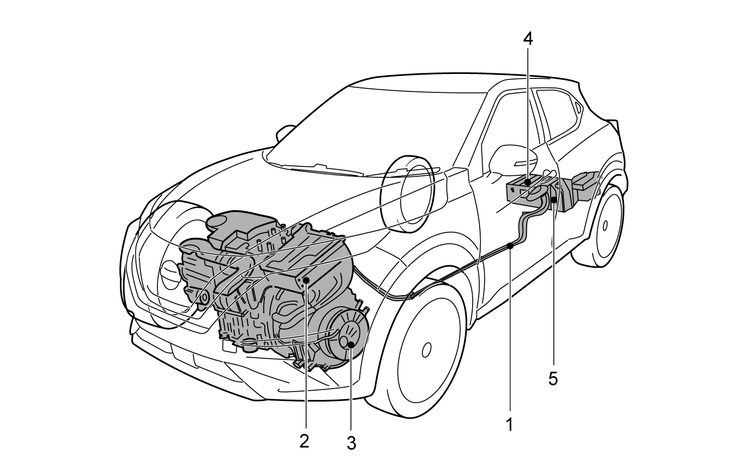

The hybrid system consists of the following high voltage parts.
High voltage harnesses (orange)
These harnesses are high voltage and orange colored.
Be sure not to touch the harnesses or remove the connector on the base of the cable.
Inverter (including DC-DC converter)
This device controls various functions related to the hybrid system.
Be careful because it can be hot after driving.
The DC/DC converter is integrated in the inverter.
Electric motor for driving
This motor is for running the vehicle. Be careful because it can be hot after driving.
Service plug
This plug is used to cut-off the high voltage when performing maintenance. Never touch this plug.
Lithium ion (Li-ion) traction battery
This battery is charged from the electric power generated by the power generator and/or the regenerative power from the electric motor (driving). The Li-ion battery also supplies the electric power to the electric motor (driving) while driving.
