Nissan Qashqai 2024 Owners Manual

10.11.1.1. Battery (Type A)

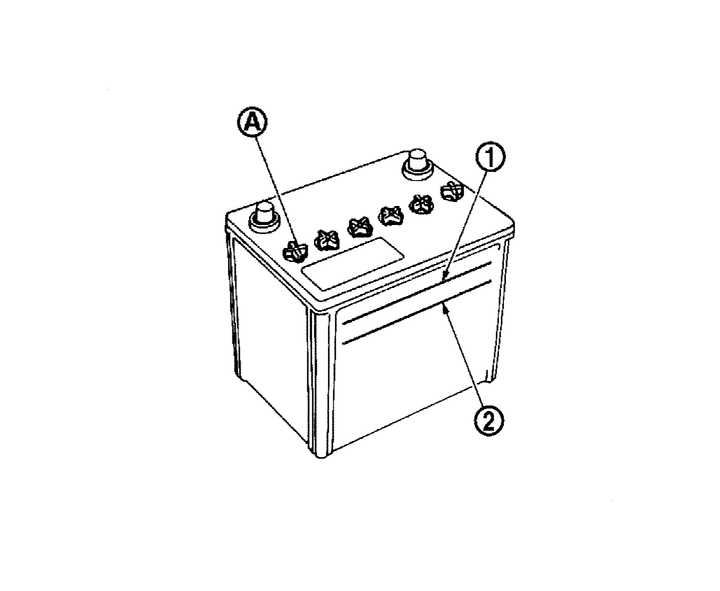

Check the fluid level in each cell. It should be between the UPPER (1) and LOWER (2) level lines.

If it is necessary to add fluid, add only distilled water to bring the level to the indicator in each filler opening. Do not overfill.

  1. Remove the cell plugs (A) using a suitable tool.

    • OK
    • ADD

  2. Add distilled water up to the UPPER level line (1).

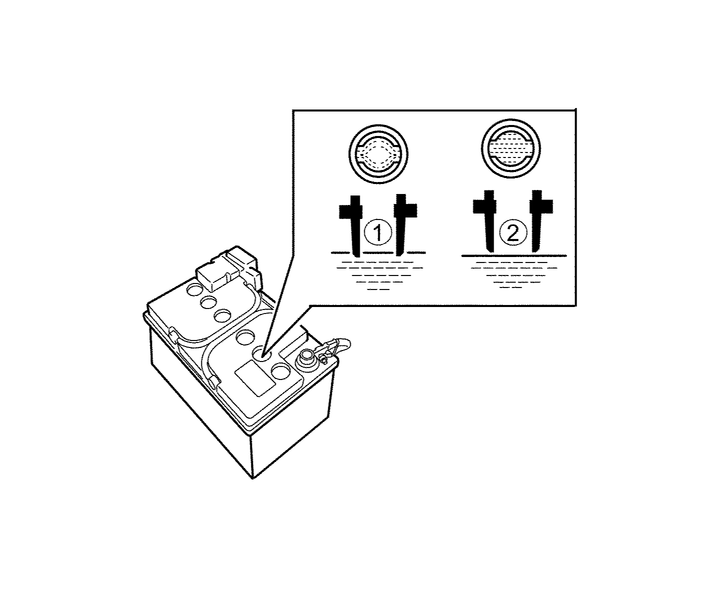

    If the side of the battery is not clear, check the electrolyte water level by looking directly above the cell, as illustrated.

  3. Tighten cell plugs.


Do not overfill battery cells. Excessive electrolyte may leak out of the battery during charging, and cause paint damage.

Parent topic:
Vehicle battery
