Nissan Juke Hybrid Owners Manual | 2024

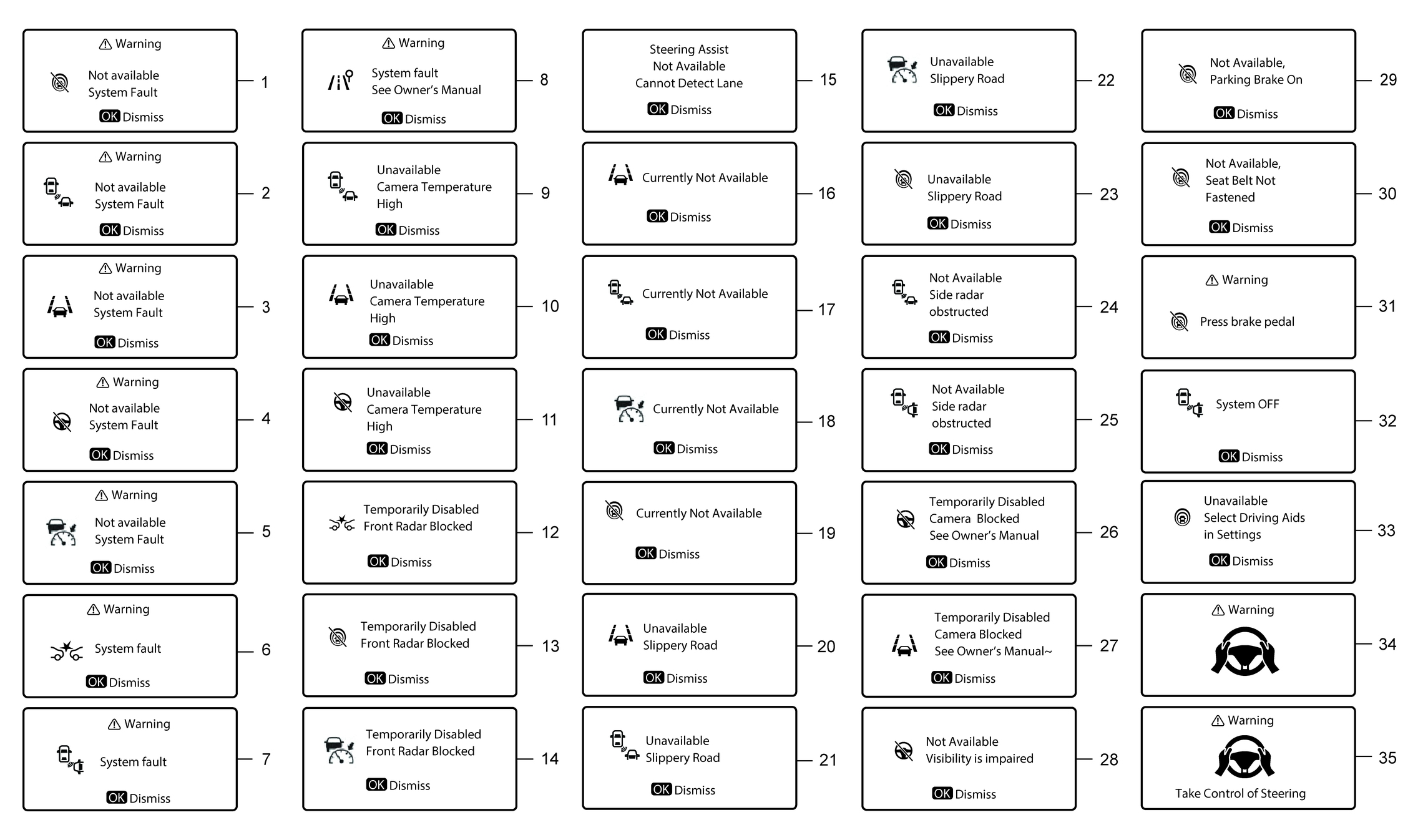

5.3.4. Vehicle information display driving aids warnings and guidance messages

1–5. [Not Available] [System Fault] warning
6–7. [System fault] warning
8. [System fault See Owner’s Manual] warning (where fitted)
9-11. [Unavailable Camera Temperature High] warning
12-14. [Temporarily Disabled Front Radar Blocked] warning
15. [Steering Assist Not Available Cannot Detect Lane] guidance (where fitted)
16-19. [Currently not available] warning
20-23. [Unavailable Slippery Road] warning (where fitted)
24-25. [Not available Side Radar Obstructed] warning (where fitted)
26-27. [Temporarily Disabled Camera Blocked See Owner’s Manual] guidance (where fitted)
28. [Not Available Visibility is impaired] guidance (where fitted)
29. [Not Available, Parking Brake On] guidance (where fitted)
30. [Not Available Seat Belt Not Fastened] guidance (where fitted)
31. [Press Brake Pedal] guidance (where fitted)
32. [System OFF] warning
33. [Unavailable Select Driving Aids in Settings] warning
34-36. Hands on detection warning (where fitted)
37. Intelligent Emergency Braking (IEB) emergency warning (where fitted)
38. Intelligent Emergency Braking (IEB) system guidance (where fitted)
39-40. Steering Assist guidance (where fitted)
41. [Only Available with Cruise Control ON] guidance (where fitted)
42. [System fault See Owner’s Manual] warning (where fitted)
43. [Currently Unavailable Front Camera High Temperature] warning (where fitted)
44. [Currently Unavailable] warning (where fitted)
45. [Temporarily Disabled Camera Blocked See Owner’s Manual] warning (where fitted)
46. [Speed Limit Database Error Please Install Latest Database Again] warning (where fitted)
47. [OK to Accept Speed Warning] guidance (where fitted)
48. [Currently Unavailable ESP OFF] warning (where fitted)
49. [Temporarily Disabled Camera Blocked See Owner’s Manual] warning (where fitted)
50. [Currently Unavailable Front Camera High Temperature] warning (where fitted)
51. [Currently Not Available] warning (where fitted)
52. [Currently Unavailable Poor Visibility] warning (where fitted)
53. [Currently Unavailable Front Camera High Temperature] warning (where fitted)
54. [Currently Unavailable ESP OFF] warning (where fitted)
55. [Currently Unavailable] warning (where fitted)
56. [Currently Unavailable Radar Inhibited] warning (where fitted)
57. [Temporarily Disabled Camera Blocked See Owner’s Manual] warning (where fitted)
58. [Temporarily Disabled Front Radar Blocked See Owner’s Manual] warning (where fitted)
59. [Unavailable Low Visibility] guidance (where fitted)
