Nissan X-Trail Owners Manual | 2024

4.17.13. Luggage under space

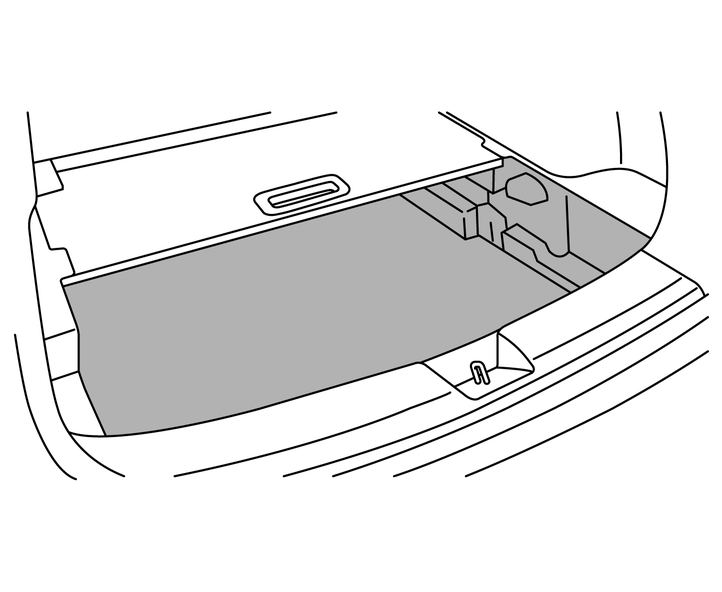

To use the luggage under space, pull off the board.
