Nissan X-Trail Owners Manual | 2024
4.5.6. Vehicle information display warnings and indicators
The displayed images may differ depending on the model.

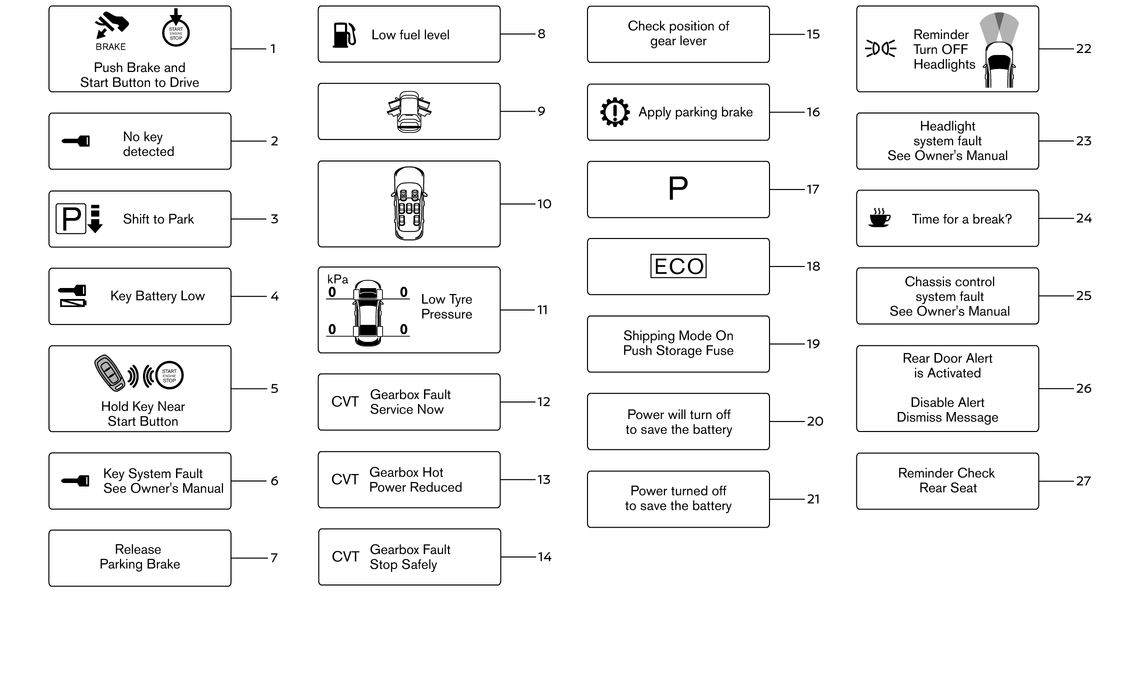

1. [Push Brake and Start Button to Drive] indicator
2. [No key detected] warning
3. [Shift to Park] warning (where fitted)
4. [Key Battery Low] warning
5. [Hold Key Near Start Button] indicator
6. [Key System Fault See Owner’s Manual] warning
7. [Release Parking Brake] warning
8. [Low fuel level] warning
9. Door/back door open warning
10. Seat belt warning
11. [Low Tyre Pressure] warning
12. [Gearbox Fault Service Now] warning
13. [Gearbox Hot Power Reduced] warning
14. [Gearbox Fault Stop Safely] warning
15. [Check position of gear lever] warning
16. [Apply parking brake] warning
17. Continuously Variable Transmission (CVT) position indicator
18. Drive Mode Selector indicator
19. [Shipping Mode On Push Storage Fuse] warning (where fitted)
20. [Power will turn off to save the battery] warning
21. [Power turned off to save the battery] warning
22. [Reminder Turn OFF Headlights] warning
23. [Headlight system fault See Owner’s Manual] warning
24. [Time for a break?] indicator
25. [Chassis control system fault See Owner’s Manual] warning
26. [Rear Door Alert is Activated] indicator (where fitted)
27. [Reminder Check Rear Seat] indicator (where fitted)

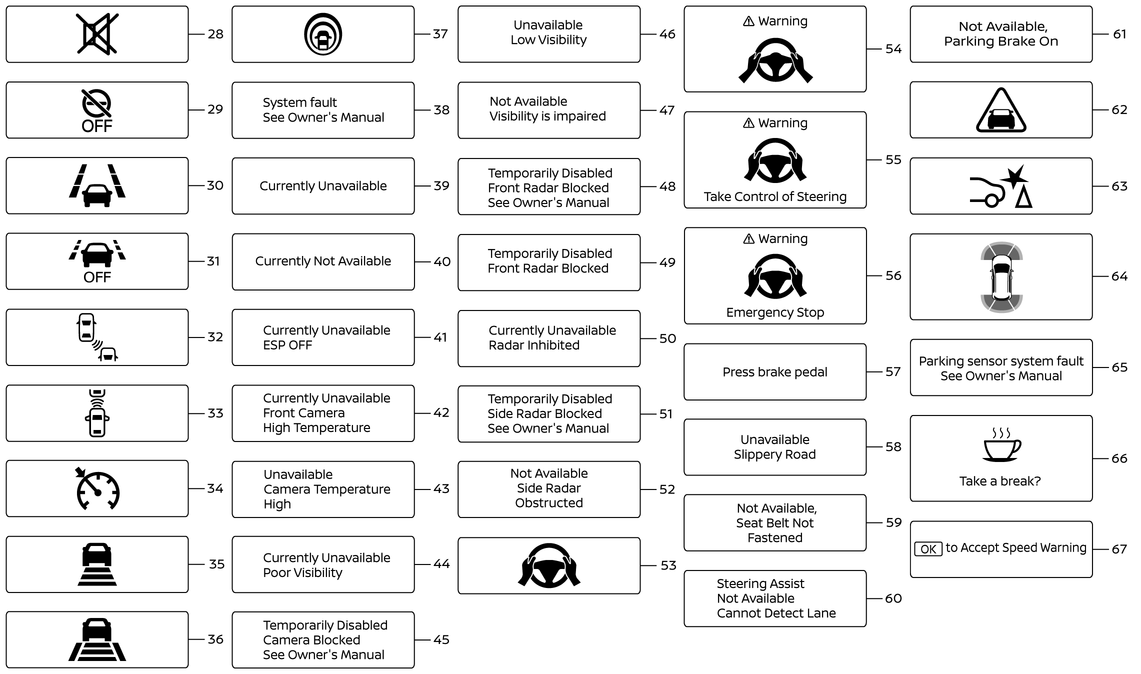

28-29. Traffic Sign Recognition (TSR) system indicators (where fitted)
30. Emergency Lane Assist (ELA) indicator (where fitted)
31. Emergency Lane Assist (ELA) OFF indicator (where fitted)
32. Blind Spot Warning (BSW)/Intelligent Blind Spot Intervention indicator (where fitted)
33. Vehicle ahead detection indicator (where fitted)
34. Cruise indicator (where fitted)
35. Intelligent Cruise Control (ICC) system status indicator (where fitted)
36. Speed control status/set distance/lane marker indicator (where fitted)
37. Intelligent Blind Spot Intervention ON/ProPILOT Assist system status indicator (where fitted)
38. [System fault See Owner’s Manual] warning
39. [Currently Unavailable] warning (where fitted)
40. [Currently Not Available] warning (where fitted)
41. [Currently Unavailable ESP OFF] warning (where fitted)
42. [Currently Unavailable Front Camera High Temperature] warning (where fitted)
43. [Unavailable Camera Temperature High] warning (where fitted)
44. [Currently Unavailable Poor Visibility] warning (where fitted)
45. [Temporarily Disabled Camera Blocked See Owner's Manual] warning (where fitted)
46. [Unavailable Low Visibility] indicator (where fitted)
47. [Not Available Visibility is impaired] indicator (where fitted)
48. [Temporarily Disabled Front Radar Blocked See Owner’s Manual] warning (where fitted)
49. [Temporarily Disabled Front Radar Blocked] warning (where fitted)
50. [Currently Unavailable Radar Inhibited] warning (where fitted)
51. [Temporarily Disabled Side Radar Blocked See Owner’s Manual] warning (where fitted)
52. [Not Available Side Radar Obstructed] warning (where fitted)
53. Steering Assist indicator (where fitted)
54–56. Hands on detection warning (where fitted)
57. [Press brake pedal] indicator (where fitted)
58. [Unavailable Slippery Road] warning (where fitted)
59. [Not Available, Seat Belt Not Fastened] indicator (where fitted)
60. [Steering Assist Not Available Cannot Detect Lane] indicator (where fitted)
61. [Not Available, Parking Brake On] indicator (where fitted)
62. Intelligent Emergency Braking emergency warning indicator
63. Rear Automatic Braking (RAB) system warning indicator (where fitted)
64. Parking sensor (sonar) system indicator (where fitted)
65. [Parking sensor system fault See Owner’s Manual] warning (where fitted)
66. [Take a break?] indicator (where fitted)
67. [OK to Accept Speed Warning] indicator (where fitted)

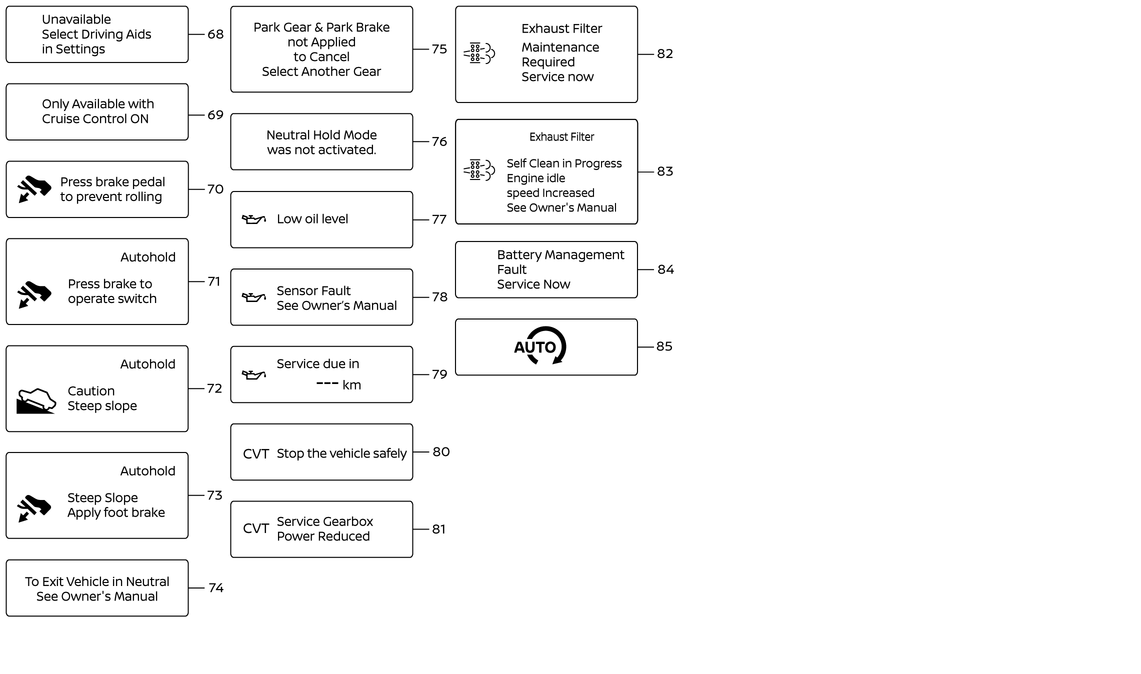

68. [Unavailable Select Driving Aids in Settings] indicator (where fitted)
69. [Only Available with Cruise Control ON] indicator (where fitted)
70. [Press brake pedal to prevent rolling] warning
71. [Press brake to operate switch] indicator
72. [Caution Steep slope] indicator
73. [Steep Slope Apply footbrake] indicator
74. Neutral Hold Mode guidance indicator (where fitted)
75. Neutral Hold Mode activated indicator (where fitted)
76. [Neutral Hold Mode was not activated] indicator (where fitted)
77. [Low oil level] warning
78. [Sensor Fault See Owner’s Manual] warning
79. Engine Oil [Service due in – – – km (mile)] indicator
80. [Stop the vehicle safely] warning (where fitted)
81. [Service Gearbox Power Reduced] warning (where fitted)
82-83. Exhaust Filter indicator (where fitted)
84. [Battery Management Fault Service Now] warning (where fitted)
85. Stop/Start System indicator
