Nissan Qashqai Owners Manual | 2025

7.35.2. How to enable/disable the parking sensor (sonar) system

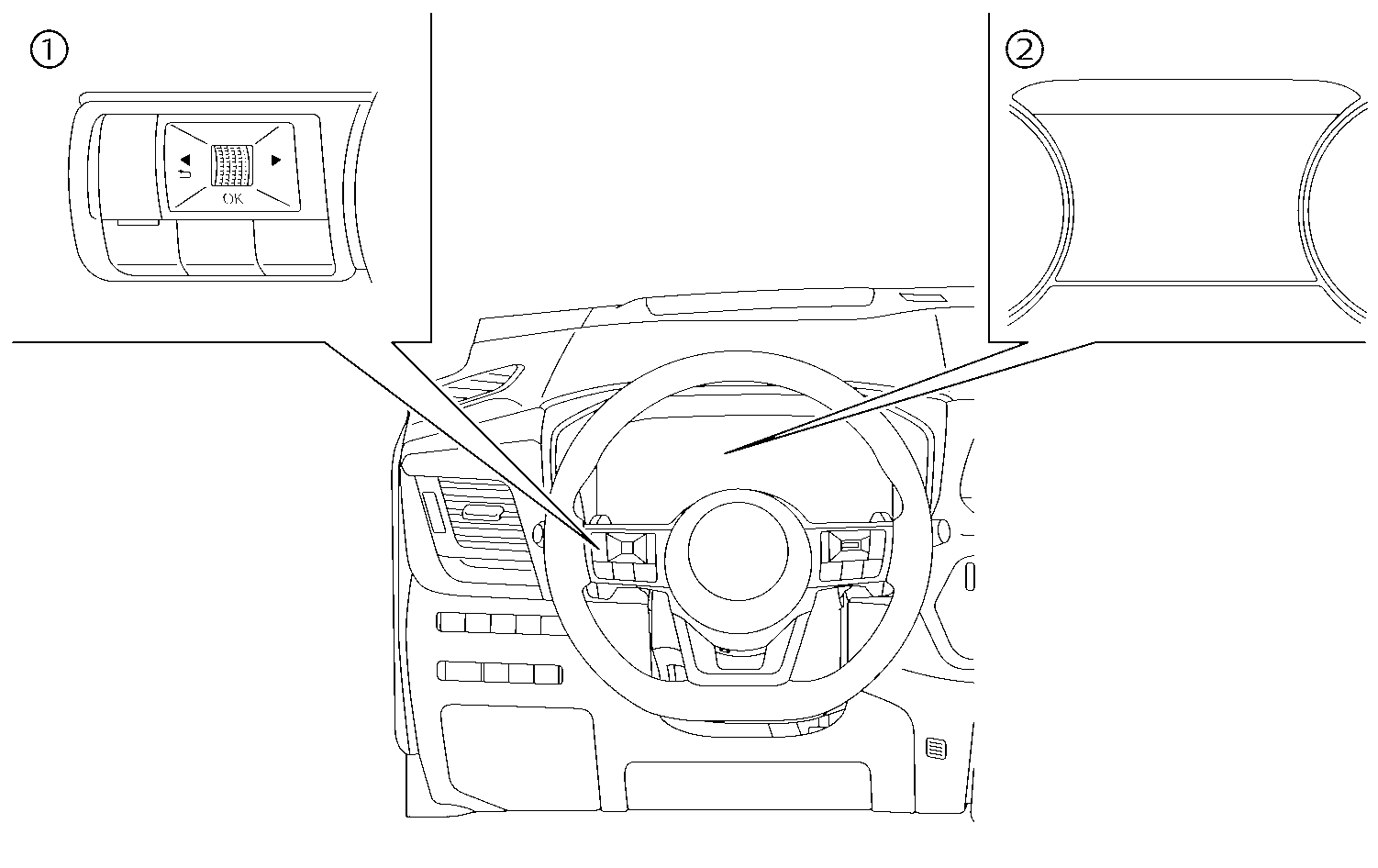

  • (1)Steering-wheel-mounted control (left side)
  • (2)Vehicle information display

The system is automatically activated when the ignition is switched ON and the transmission is in the D (Drive) or R (Reverse) position.

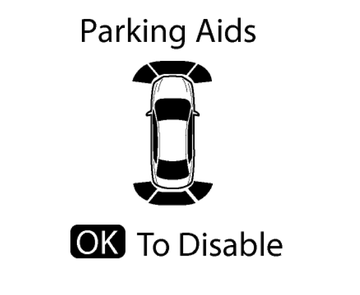

When the transmission is in R (Reverse) and the [Parking Aids] screen is displayed in the vehicle information display the parking sensor (sonar) system can be disabled temporarily by pushing the <OK> switch on the steering wheel.

Perform the following steps to set up the parking sensor (sonar) system function.

  1. Push the image image button until [Settings] appears in the vehicle information display and then push the scroll dial. Use the scroll dial to select [Driver Assistance]. Then push the scroll dial.

  2. Select [Parking Aids] and push the scroll dial.

  3. Use the scroll dial to navigate in the menu and select or change an item:

    • [Moving Object]

    • [Display]

      • Shows the parking sensor (sonar) display in the vehicle information display when the system activates

    • [Front] (where fitted)

      • Turns ON/OFF the front parking sensors

    • [Rear]

      • Turns ON/OFF the rear parking sensors

    • [Side] (where fitted)

      • Turns ON/OFF the side parking sensors

    • [Distance]

      • Changes the parking sensor’s detection distance to [Far], [Medium] or [Near]

    • [Volume]

      • Changes the volume of the tone sound to [High], [Medium] or [Low]

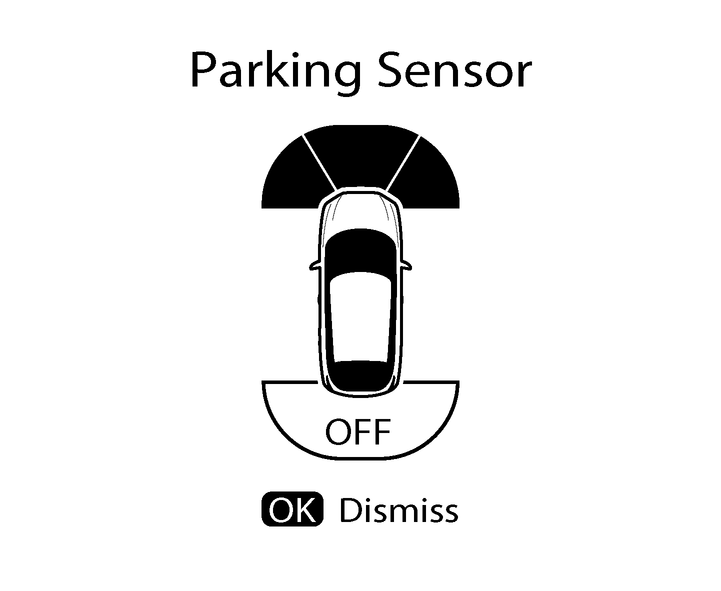

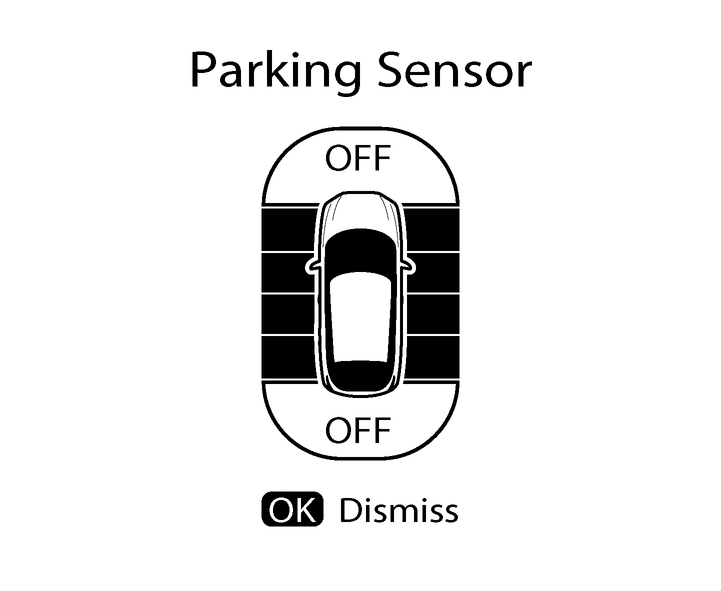

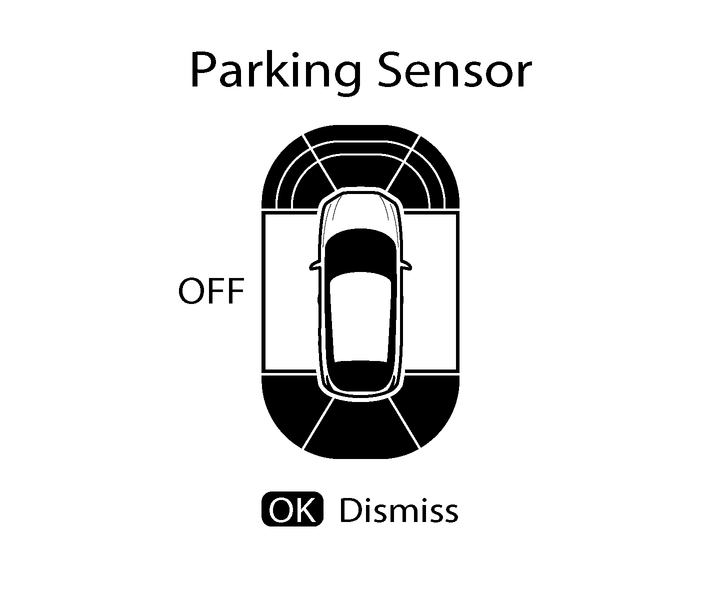

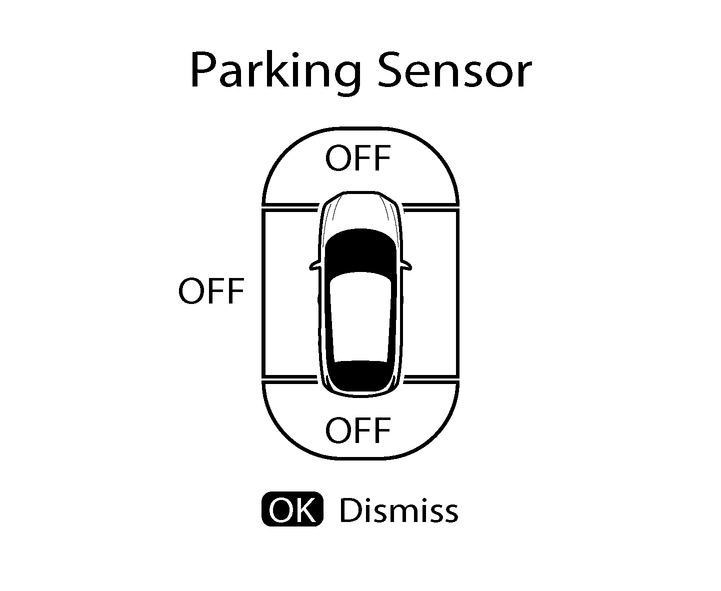

Parking sensor OFF notifications:

When the front, rear or side parking sensors (where fitted) are turned OFF, a notification will be displayed in the vehicle information display, depending on which sensors are turned OFF. Examples of this notification are shown below:

imageimageimageimageParent topic:
Front and Rear Ultrasonic Parking Sensors (where fitted)
