8.5.4.3. Repairing tyre

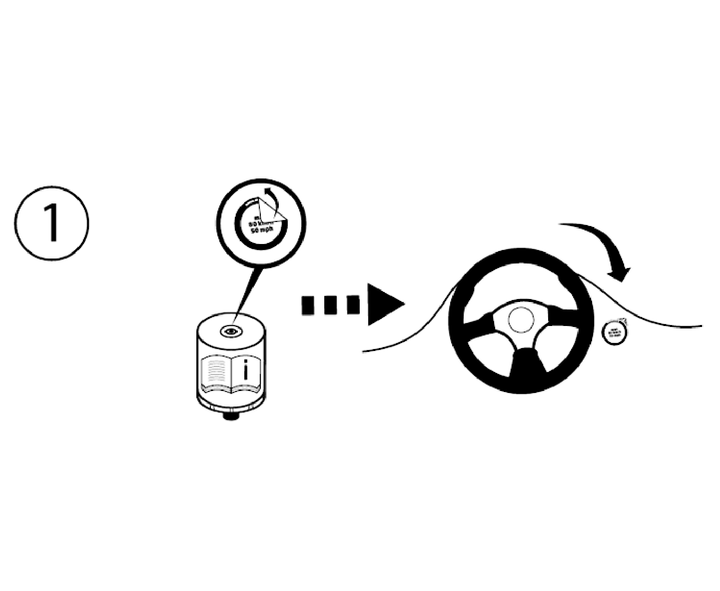

Peel off­ the warning sticker with the maximum permissible speed (80 km/h | 50 MPH) info from bottom of the sealant bottle , then place it in a location where the driver can see it while driving (1).

Detach the hose and expand power plug socket and cable from the compressor. Securely attach the sealant bottle to the compressor housing by gently screwing it (90 degrees clockwise) onto the output valve (2).

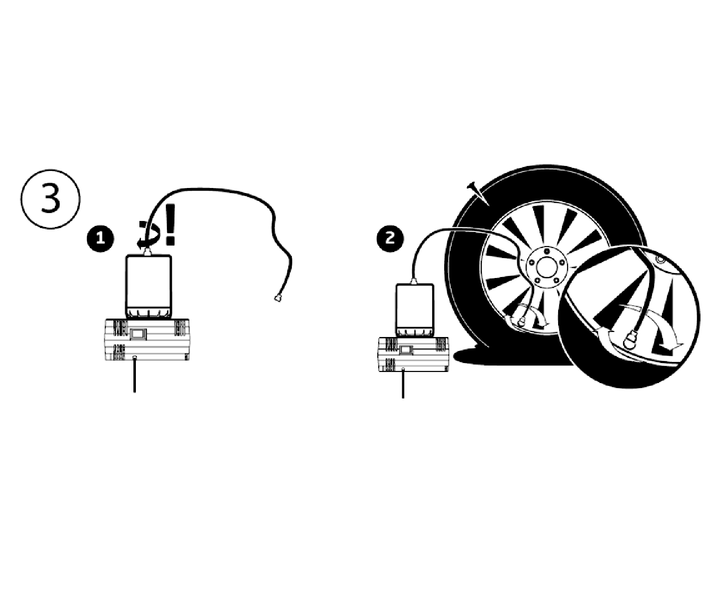

Rotate the hose valve 90 degrees clockwise and attach it to the bottle's output valve. Then, connect the hose cable to the tyre valve (3).

Ensure that the bottle and hose are properly connected to prevent pressure loss.

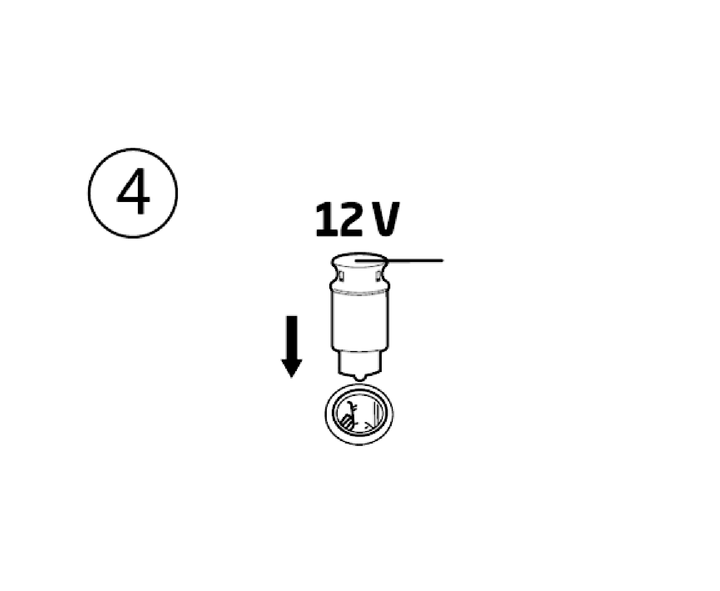

Insert the power plug into the power outlet in the vehicle (4). Make sure no other accessories are fitted to the power outlet. For details, see

Switch the ignition ON.

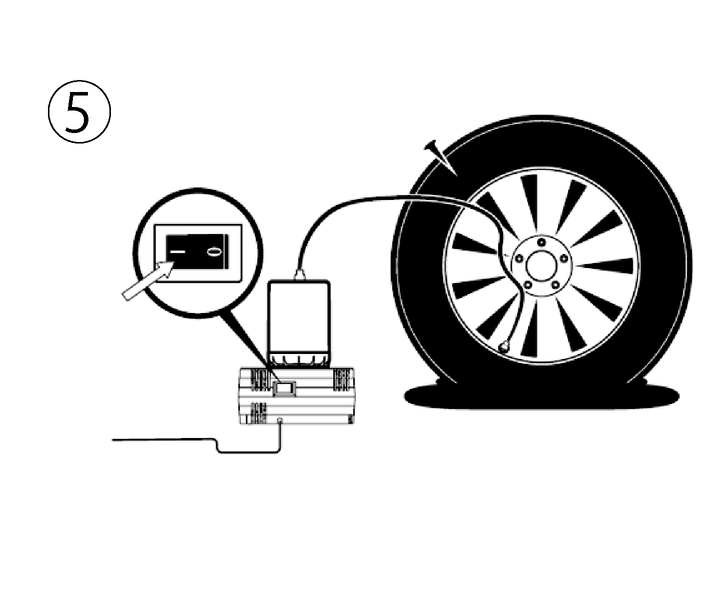

Switch on the compressor (5), and inflate the tyre to the pressure that is specified on the tyre placard affixed to the driver’s side centre pillar.

Do not operate the compressor for more than 10 minutes.

If the tyre pressure does not increase to the specified pressure within 10 minutes, the tyre may be seriously damaged and the tyre cannot be repaired with this tyre repair kit. Contact a NISSAN dealer or qualified workshop.

Remove the air compressor from the tyre valve. Immediately drive the vehicle at a speed of 80 km/h (50 MPH) or less.

After 10 minute or 10 km (6 miles) drive, check the tyre pressure. The temporary repair is completed if the tyre pressure does not drop.

If the tyre pressure is lower than specified, repeat the steps from step 4.

If the pressure drops again or under 130 kPa (1,3 bar, 19 psi), the tyre cannot be repaired with this tyre repair kit. Contact a NISSAN dealer or qualified workshop.
