Nissan Qashqai Owners Manual | 2025

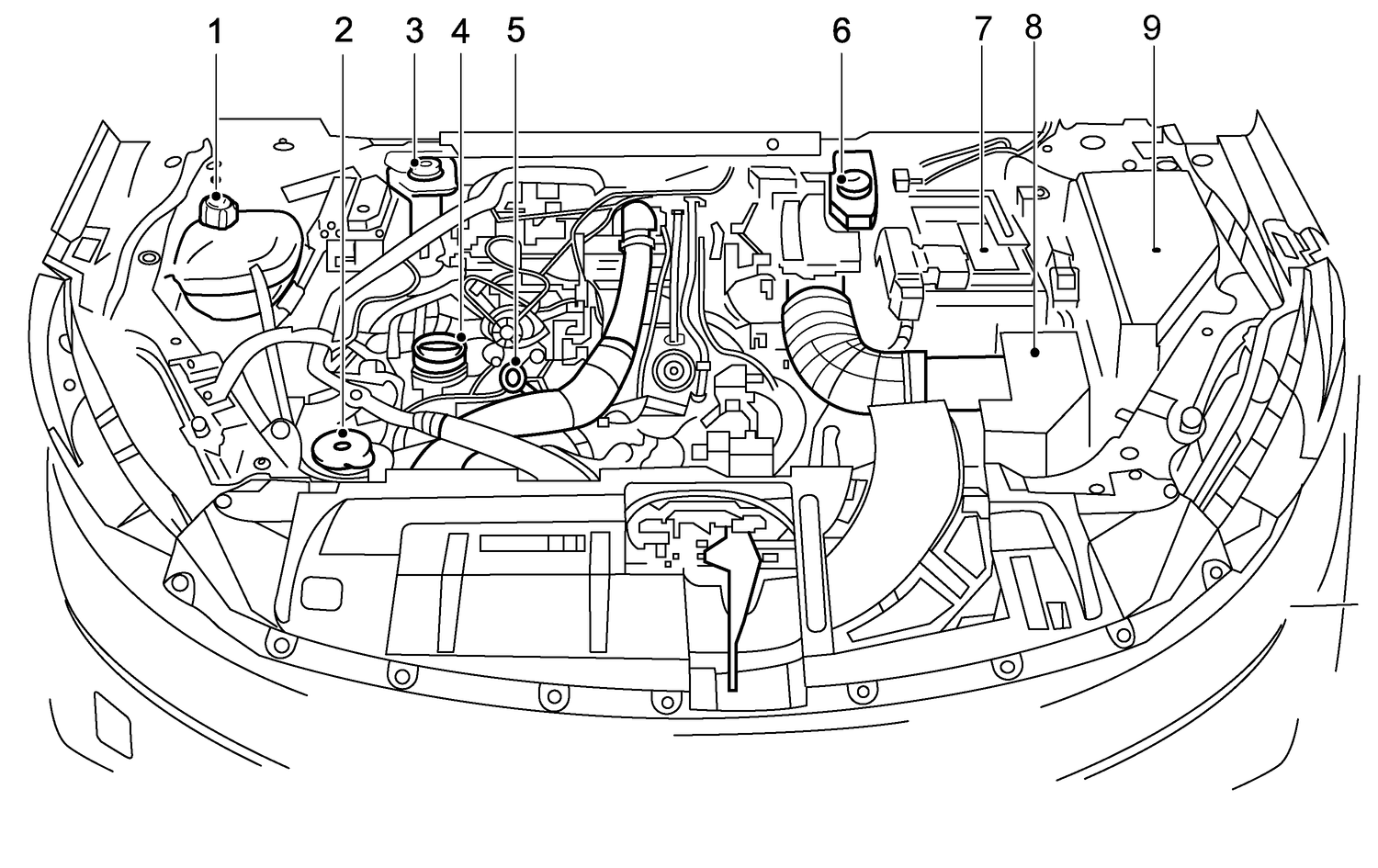

2.8.1. HR13DDT engine

1. Engine coolant reservoir (P.
Engine cooling system
)
2. Window washer/headlight cleaner (where fitted) fluid reservoir (P.
Window washer fluid
)
3. Brake/clutch fluid reservoir (MT (RHD) models), Brake fluid reservoir (Xtronic transmission (RHD) models) (P.
Brake and clutch fluid
)
4. Engine oil filler cap (P.
Engine oil
)
5. Engine oil dipstick (P.
Engine oil
)
6. Brake/clutch fluid reservoir (MT (LHD) models), Brake fluid reservoir (Xtronic transmission (LHD) models) (P.
Brake and clutch fluid
)
7. Battery (P.
Battery
)
8. Air cleaner (P.
Air cleaner filter
)
9. Fuses/fusible link box (P.
Fuses
)

Parent topic:

Engine compartment
