6.9.6.1. Radio approval number and information

Type A and Type C:

Hereby, Robert Bosch GmbH declares that the radio equipment type AIVI2SBXM is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

Hereby, Robert Bosch GmbH declares that the radio equipment type AIVI2SBXM is in compliance with Radio Equipment Regulations 2017.

Frequency Band

2400 MHz - 2480 MHz

5490 MHz - 5600 MHz

5650 MHz - 5710 MHz ≤ 100 mW

5735 MHz - 5835 MHz ≤ 25 mW

Radiated Power [EIRP]

Bluetooth < 10 mW

WLAN < 100 mW

Hints/Restrictions

Internal Antenna

Internal antenna not accessible by user. Any change by the user will violate the legal approval of this product.

Type B:

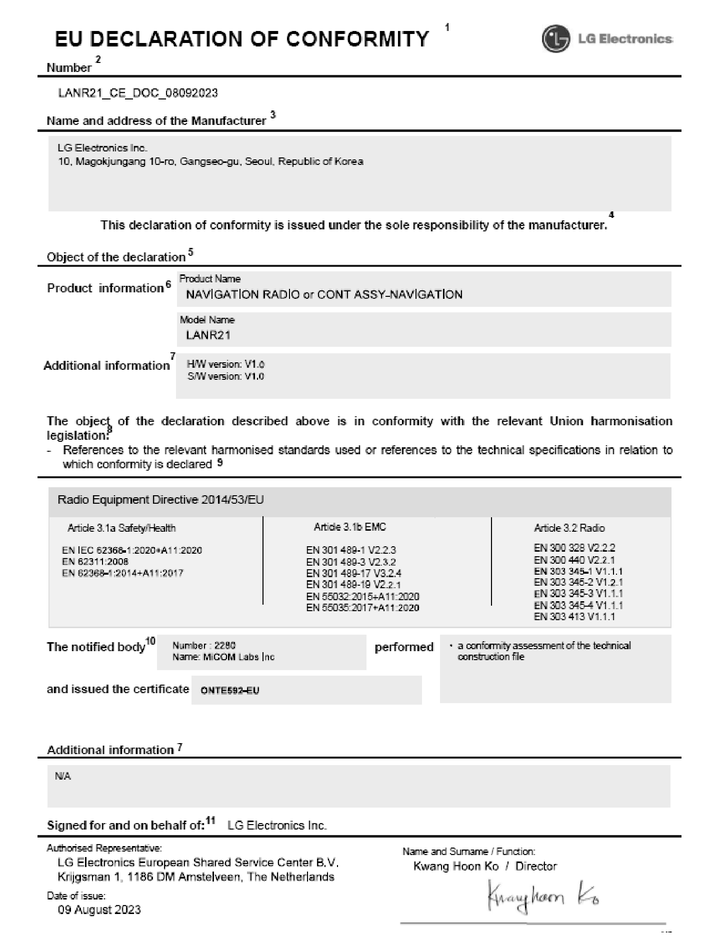

Hereby, LG Electronics Inc. declares that the radio equipment type LANR21 is in compliance with Directive 2014/53/EU.

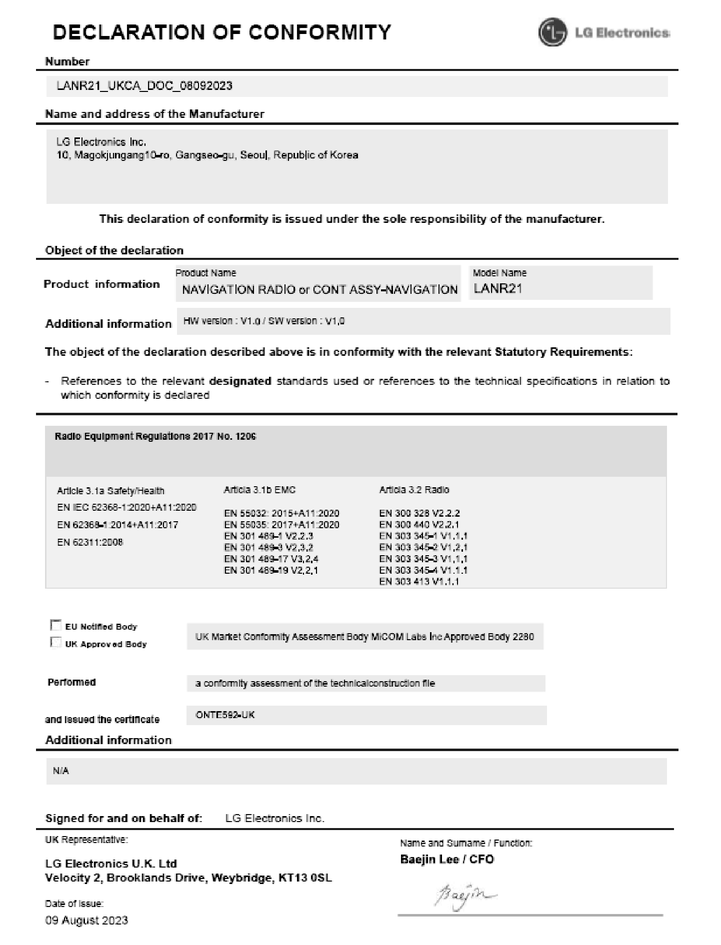

Hereby, LG Electronics Inc. declares that the radio equipment type LANR21 is in compliance with Radio Equipment Regulations 2017.

Frequency Band

2402 MHz - 2480 MHz

2412 MHz - 2472 MHz

5745 MHz - 5805 MHz

Radiated Power [EIRP]

Bluetooth < 100 mW

BLE < 10 mW

WLAN 2.4 GHz < 100 mW

WLAN 5725 MHz - 5850 MHz < 25mW

Type D:

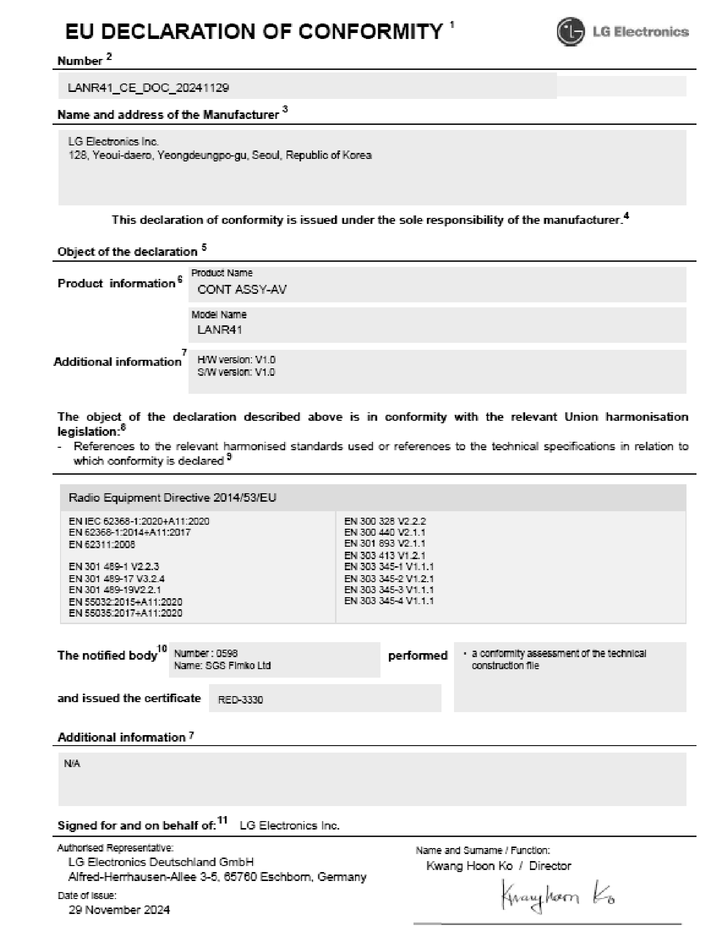

Hereby, LG Electronics Inc. declares that the radio equipment type LANR41 is in compliance with Directive 2014/53/EU.

The use of the 5150-5350 MHz band is restricted to indoor use including installations inside road vehicles. This restriction exists in Belgium (BE), Bulgaria (BG), Czech Republic (CZ), Denmark (DK), Germany (DE), Estonia (EE), Ireland (IE), Greece (EL), Spain (ES), France (FR), Croatia (HR), Italy (IT), Cyprus (CY), Latvia (LV), Lithuania (LT), Luxembourg (LU), Hungary (HU), Malta (MT), Netherlands (NL), Austria (AT), Poland (PL), Portugal (PT), Romania (RO), Slovenia (SI), Slovakia (SK), Finland (FI), Sweden (SE), Northern Ireland (UK(NI)), Switzerland (CH), Iceland (IS), Liechtenstein (LI) and Norway (NO).

Bluetooth:

Frequency Range: 2402 to 2480 MHz

Output power: Maximum 6.0 dBm

Wi-Fi

Standard: IEEE 802.11 a/b/g/n/ac

Frequency Range / Output Power:

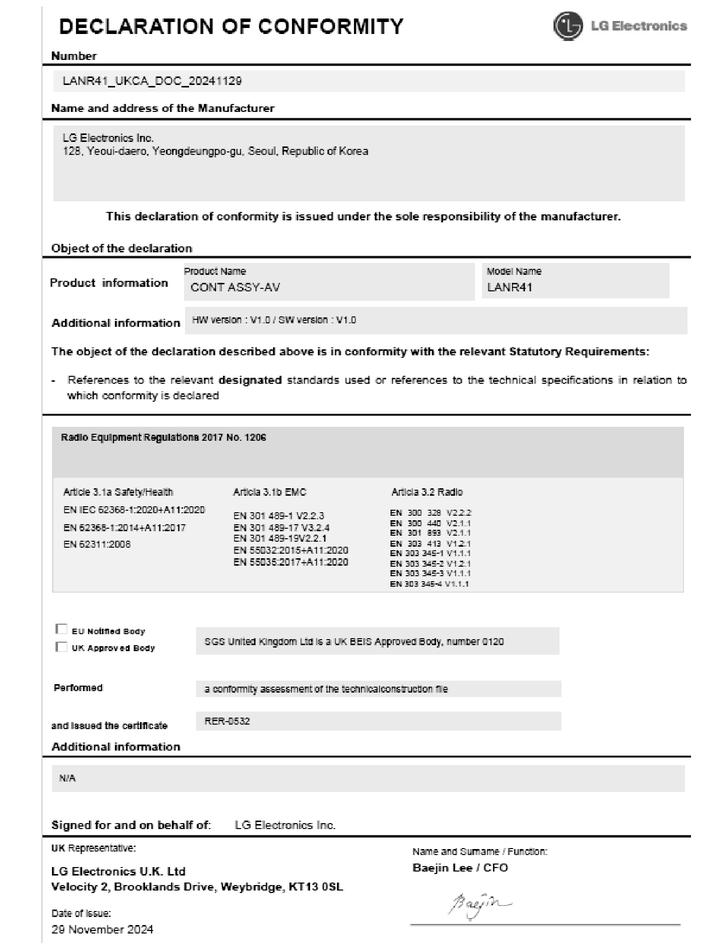

Hereby, LG Electronics Inc. declares that the radio equipment type LANR41 is in compliance with the relevant statutory requirements.

The use of the 5150-5350 MHz band is restricted to indoor use including installations inside road vehicles.

Bluetooth:

Frequency Range: 2402 to 2480 MHz

Output power: Maximum 6.0 dBm

Wi-Fi

Standard: IEEE 802.11 a/b/g/n/ac

Frequency Range / Output Power:

Type A and Type C:

Type B:

Frequency Band

2402 MHz - 2480 MHz

2412 MHz - 2472 MHz

5745 MHz - 5805 MHz

Radiated Power [EIRP]

Bluetooth < 100 mW

BLE < 10 mW

WLAN 2.4 GHz < 100 mW

WLAN 5725 MHz - 5850 MHz < 25mW

Type D:

The use of the 5150-5350 MHz band is restricted to indoor use including installations inside road vehicles.

Bluetooth:

Frequency Range: 2402 to 2480 MHz

Output power: Maximum 6.0 dBm

Wi-Fi

Standard: IEEE 802.11 a/b/g/n/ac

Frequency Range / Output Power:
