Nissan X-Trail e-POWER Owners Manual | 2024

5.17.1.2. Second row seat

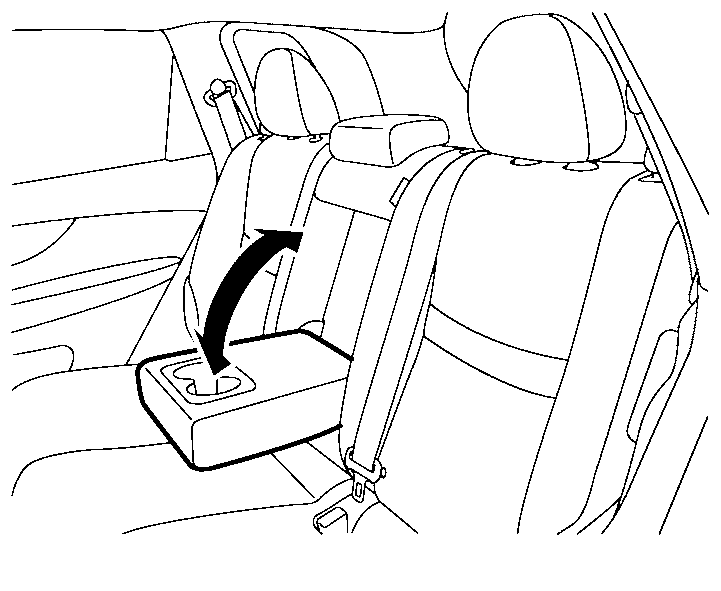

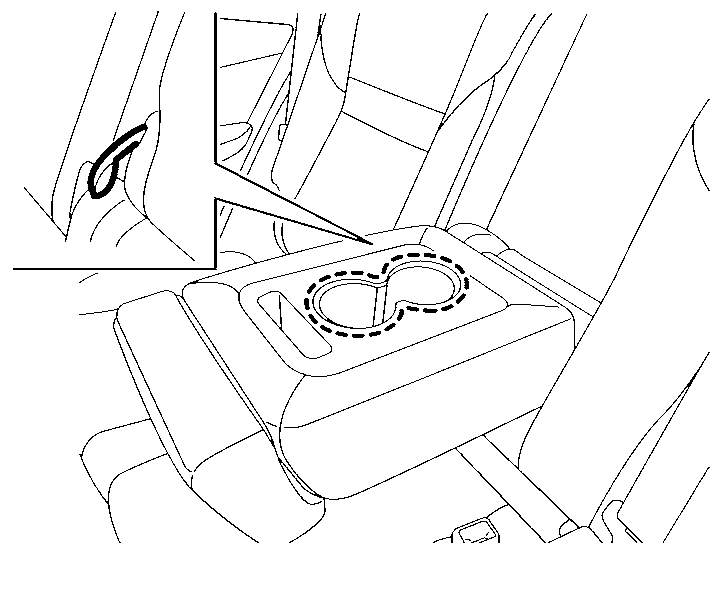

The cup holders are located in the fold-down armrest.
